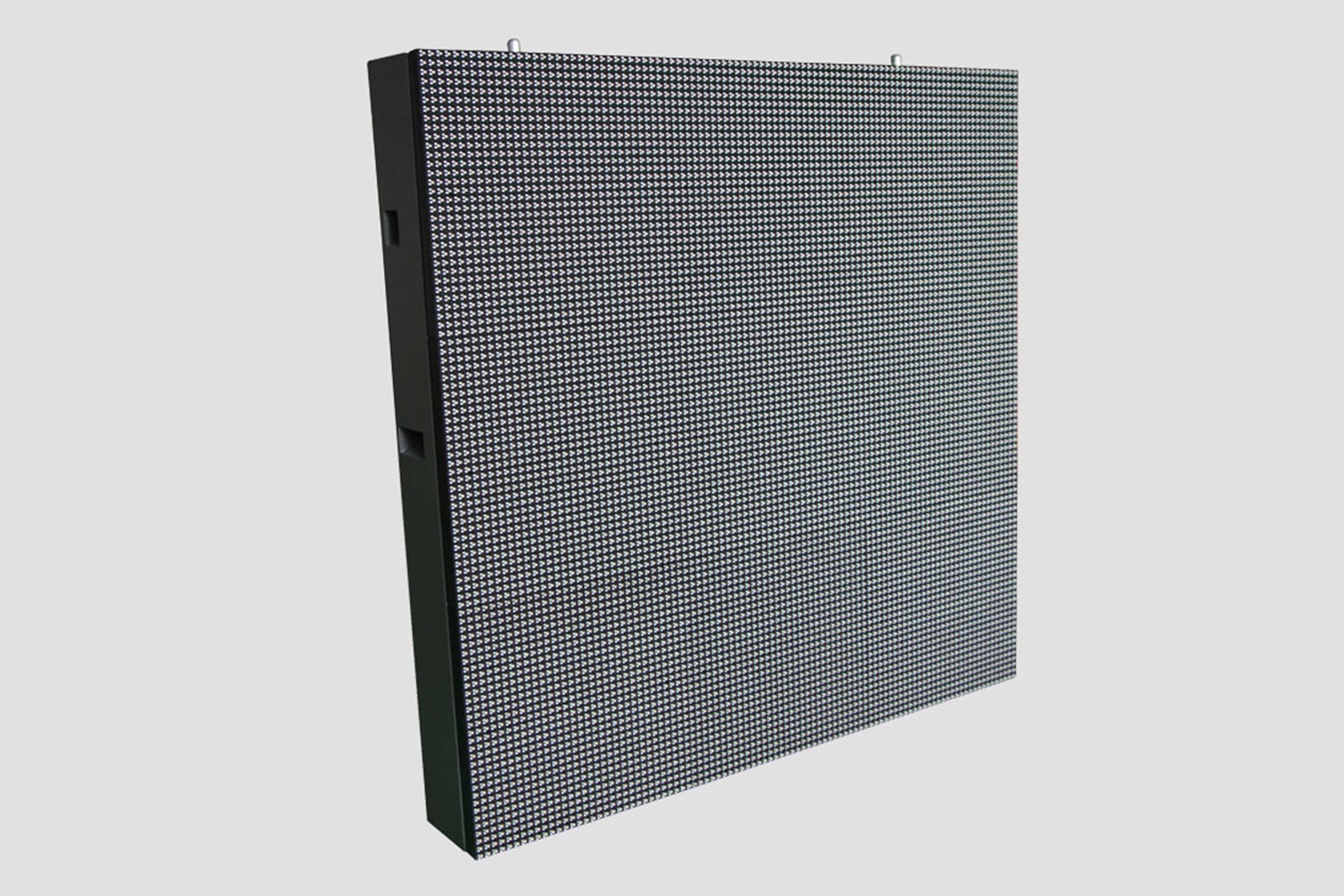

(1)QO series product is easy for fast installation and repairing .Hollow screen body , modules ,control box and cables are easy to be separately dismantled and convenience for transportation.
(2)Screen body front service can be reduced the installation structure material ,thinner body and saved the installation cost.

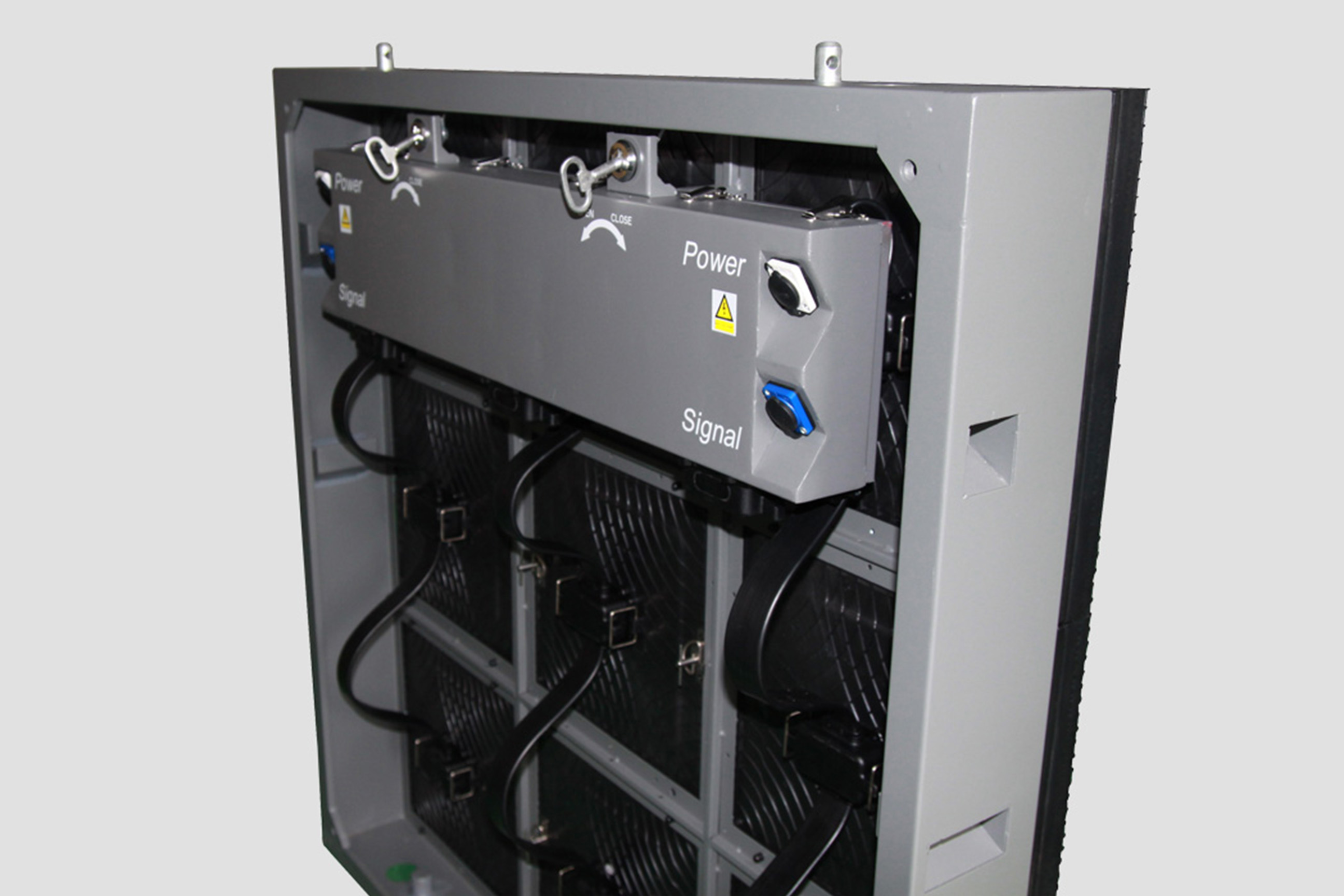

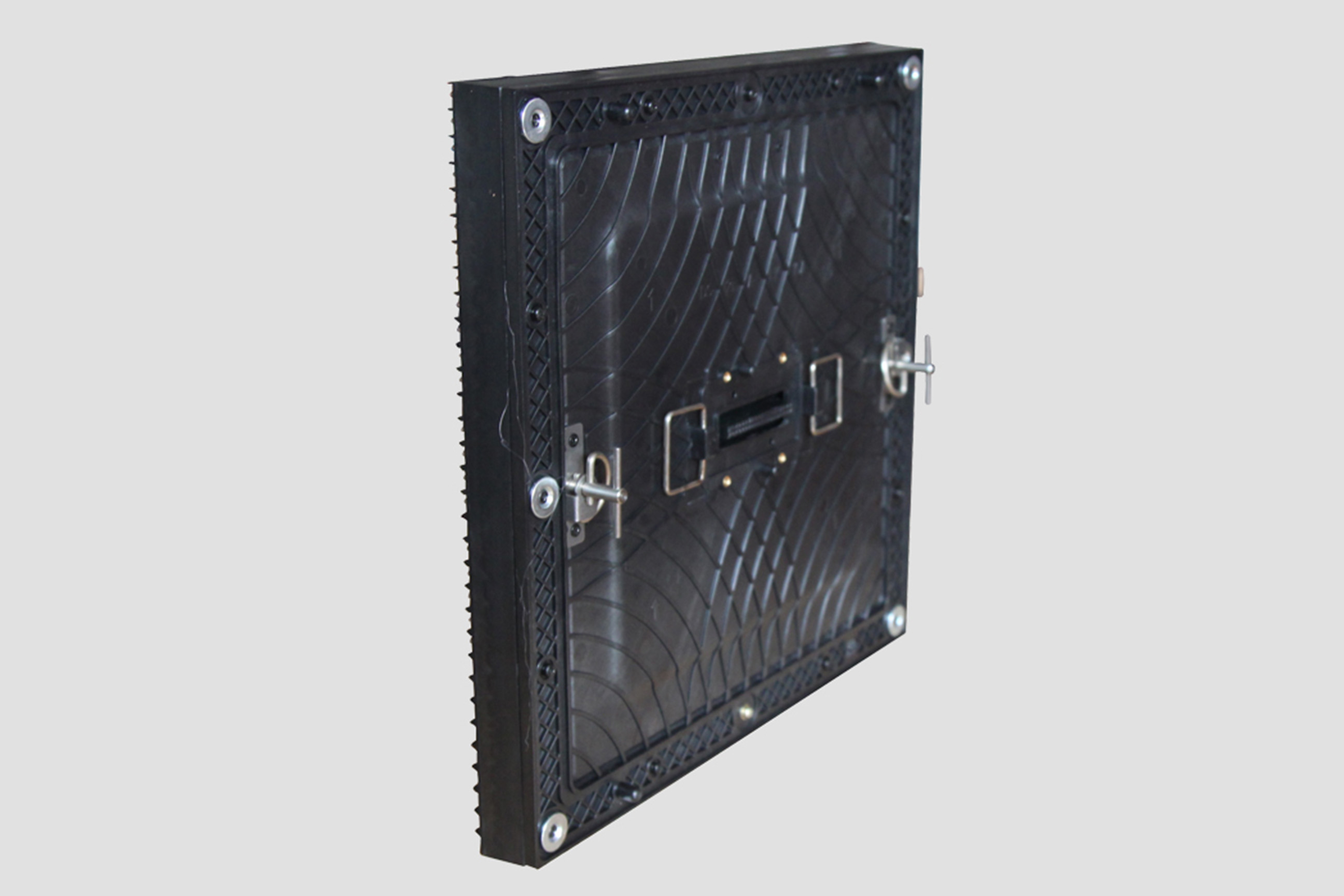

(3) Screen body rear services are the fast lock and single cable design ,30s only for dismantling a module.
| QO Series | QOD10 | QOS10 | QOS8 | QOS6 | |||
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |||
| Pixel Density | 11022 pixels/m2 | 11022 pixels/m2 | 17222 pixels/m2 | 24800 pixels/m2 | |||
| Pixel Package | DIP346 | SMD3535 | SMD3535 | SMD3535 | |||
| Pixel Pitch | 9.525mm | 9.525mm | 7.62mm | 6.35mm | |||
| Module Size | 1x1ft | 1x1ft | 1x1ft | 1x1ft | |||
| Module Resolution | 32x32 | 32x32 | 40x40 | 48x48 | |||
| *Cabinet Size | 914.4x914.4mm | 914.4x914.4mm | 914.4x914.4mm | 914.4x914.4mm | |||
| *Cabinet Resolution | 96x96 | 96x96 | 96x96 | 128x128 | |||
| Cabinet Material | Aluminum | Aluminum | Aluminum | Iron or Aluminum | |||
| Cabinet Weight | ≤36Kg/panel | ≤36Kg/panel | ≤36Kg/panel | ≤36Kg/panel | |||
| Max Brightness | 8000nit | 6500nit | 6500nit | 6000nit | |||
| Color Temperature | 3000-12000K | 3000-12000K | 3000-12000K | 3000-12000K | |||
| Horizontal Viewing Angle | 120° | 140° | 140° | 140° | |||
| Vertical Viewing Angle | 60° | 140° | 140° | 140° | |||
| Driving Mode | 1/4 | 1/2 | 1/4 | 1/6 | |||
| Refresh Rate | 1920~3840Hz | 1920~3840Hz | 1920~3840Hz | 1920~3840Hz | |||
| Frame Frequency | 60Hz | 60Hz | 60Hz | 60Hz | |||
| Gray Level | 8192~65536 | 8192~65536 | 8192~65536 | 4096~65536 | |||
| Number Of Colors | 1,073,741,824 | 1,073,741,824 | 1,073,741,824 | 1,073,741,824 | |||
| Input Maximum Power | 550W/m2 | 750W/m2 | 900W/m2 | 900W/m2 | |||
| Actual Use Power | 180 ~ 270W/m2 | 250 ~ 370W/m2 | 300 ~ 450W/m2 | 180 ~ 270W/m2 | |||
| Input Voltage | AC220V±10%/AC110V±10% | ||||||
| Input Frequency | 50/60Hz | ||||||
| Signal Transmission Distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | ||||||
| External Interface | S-Video,VGA,CVBS,DVI,YPrPb,HDMI,SDI Etc.(Options) | ||||||
| Storage Temperature | -40~+60℃ | ||||||
| Operating Temperature | -30~+50℃ | ||||||
| Storage Humidity | 10%~90% | ||||||
| Operating Humidity | 10%~90% | ||||||
| IP Rating | IP67 | ||||||
| Lifetime | 100000 Hrs | ||||||
