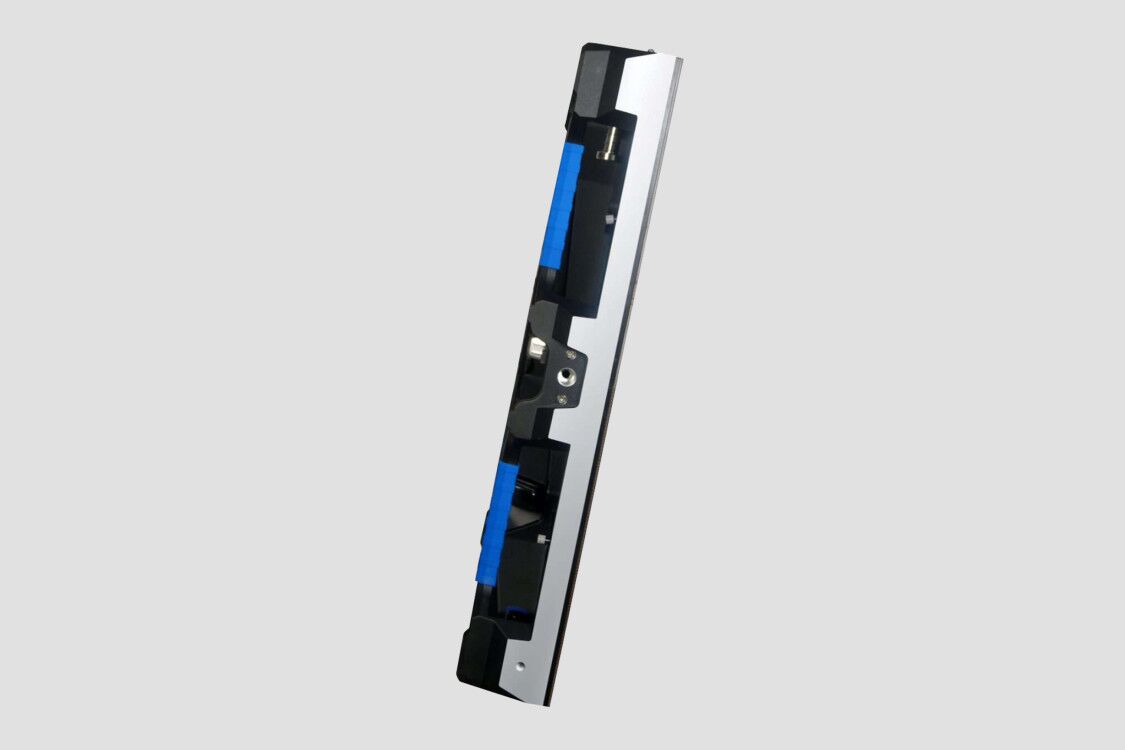

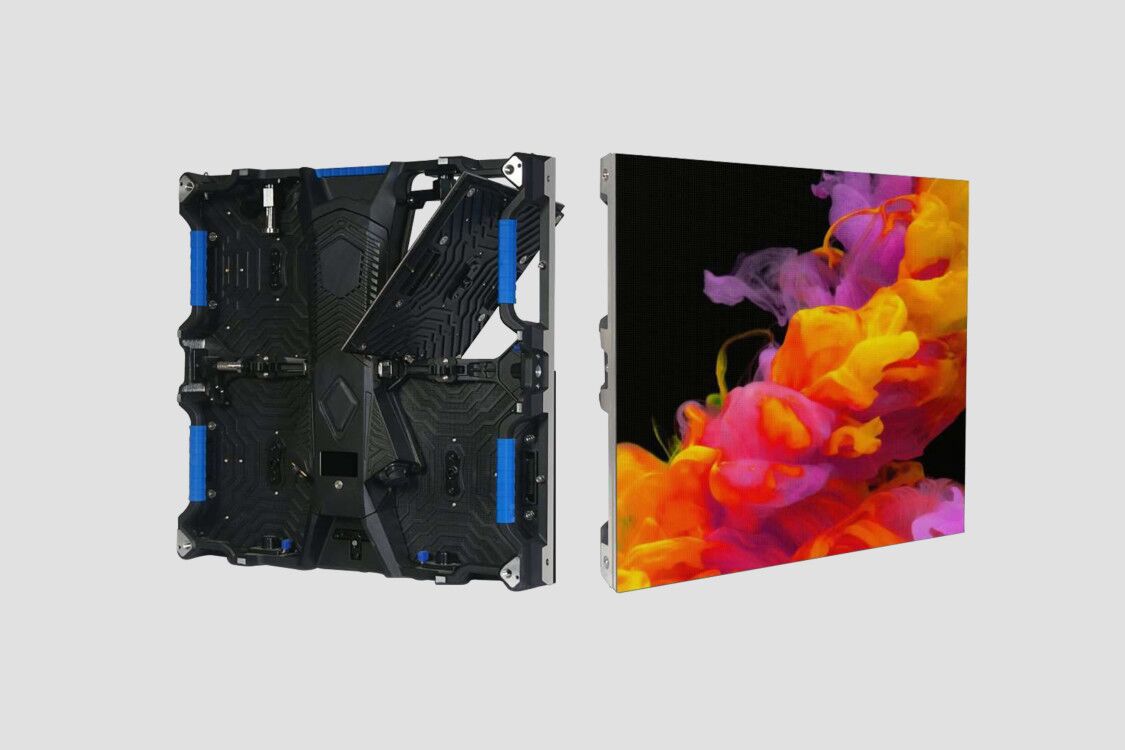

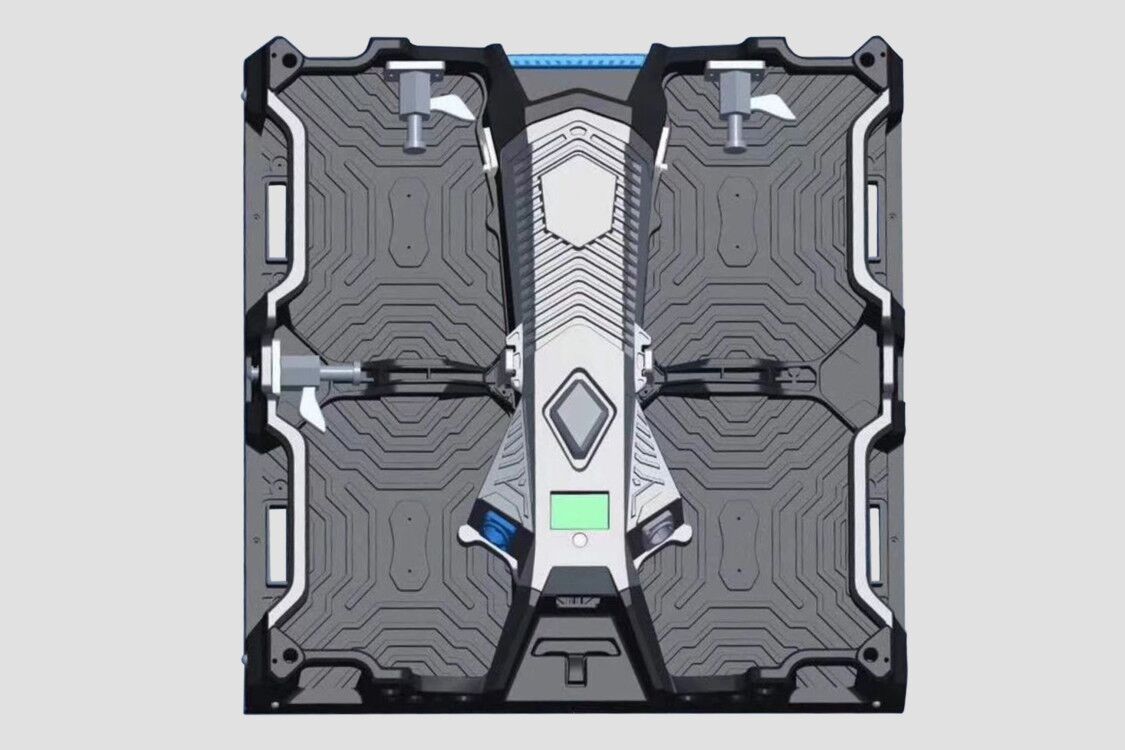

Indoor Rental Die-casting LED Display
- Model Number：
- Views：450
- ：Click the picture to enlarge display
RS cabinet of features:
(1) Indoor and outdoor using
(2) Slim and light weight is 8kgs/cabinet
(3) Full front and rear service
(4) Can do the curved installation and 45 degrees of cabinet
(5) The two cabinets of upper and lower connections are firstly fixed by magnetic poles and then by fast lockers .
(6) Outdoor modules of special waterproof design for two waterproof glue circles for two times of protections
(7) Special design of module’s masks to be prevented LED lamps from damages.
(8) Indoor for 2.6mm,2.84mm,2.9mm ,3.91mm and 4.81mm
Outdoor for 3.91mm,4.81mm,5.95mm and 6.25mm
|
|
Indoor using |
|||
|
Model |
RS2.6 |
RS2.84 |
RS2.98 |
RS3.91 |
|
Pixel Pitch(mm) |
2.6 |
2.84 |
2.98 |
3.91 |
|
Pixel Density(pixels/sq.m)) |
147456 |
123904 |
112896 |
65746 |
|
LED type |
SMD2020 Black |
SMD2020 Black |
SMD2020 Black |
SMD2020 Black |
|
Viewing Angle (°) |
H160°/V160° |
H160°/V160° |
H140°/V140° |
H140°/V140° |
|
Brightness(nits) |
1500 |
1500 |
1200 |
1200 |
|
Drive mode |
1/16 |
1/22 |
1/14 |
1/16 |
|
Driving IC |
MBI5252 |
MBI5153 |
MBI5124 |
MBI5124 |
|
Color Depth(bits ) |
14 |
14 |
16bit |
16bit |
|
Refresh Rate (Hz) |
≥3840Hz |
≥3000Hz |
≥1920Hz |
≥1920Hz |
|
Module Size(mm) |
250*250 |
250*250 |
250*250 |
250*250 |
|
Module resolution(pixels ) |
96*96 |
88*88 |
84*84 |
64*64 |
|
Cabinet Size(mm) |
500*500*87 |
500*500*87 |
500*500*87 |
500*500*87 |
|
Cabinet resolution (pixels) |
192*192 |
176*176 |
168*168 |
128*128 |
|
Cabinet Type and Material |
Die-Casting Aluminium |
Die-Casting Aluminium |
Die-Casting Aluminium |
Die-Casting Aluminium |
|
Cabinet Weight （kgs） |
8 |
8 |
8 |
8 |
|
Voltage |
110/220 |
110/220 |
110/220 |
110/220 |
|
Avg. Power Consumption (W/㎡) |
300 |
300 |
300 |
300 |
|
Max. Power Consumption (W/㎡) |
800 |
800 |
800 |
800 |
|
Service Access |
Front&Rear |
Front&Rear |
Front&Rear |
Front&Rear |
|
IP Grade (Front/Rear) |
IP40 |
IP40 |
IP40 |
IP40 |
|
Operating Temp/Humidity |
-20℃～65℃ 10-90%RH |
-20℃～65℃ 10-90%RH |
-20℃～65℃ 10-90%RH |
-20℃～65℃ 10-90%RH |
|
Storage Temp/Humidity |
-30℃～70℃ 10-90%RH |
-30℃～70℃ 10-90%RH |
-30℃～70℃ 10-90%RH |
-30℃～70℃ 10-90%RH |
|
Lifetime(Normal Temp) |
≥100000H |
≥100000H |
≥100000H |
≥100000H |
|
Compliant Standard |
CE |
CE |
CE |
CE |
