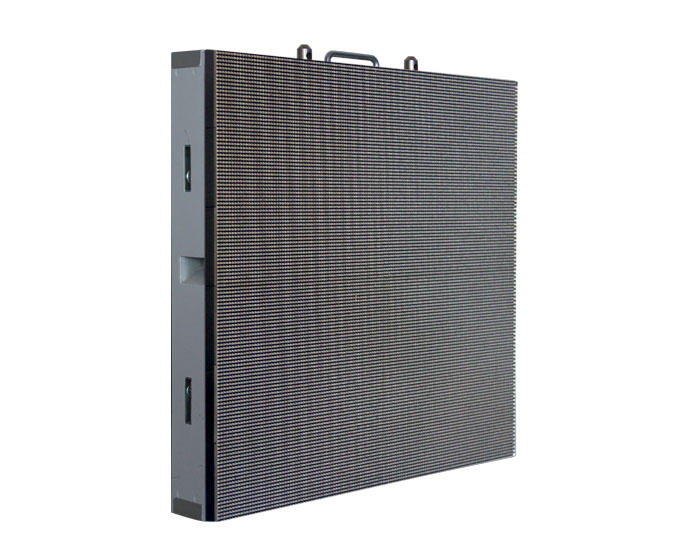

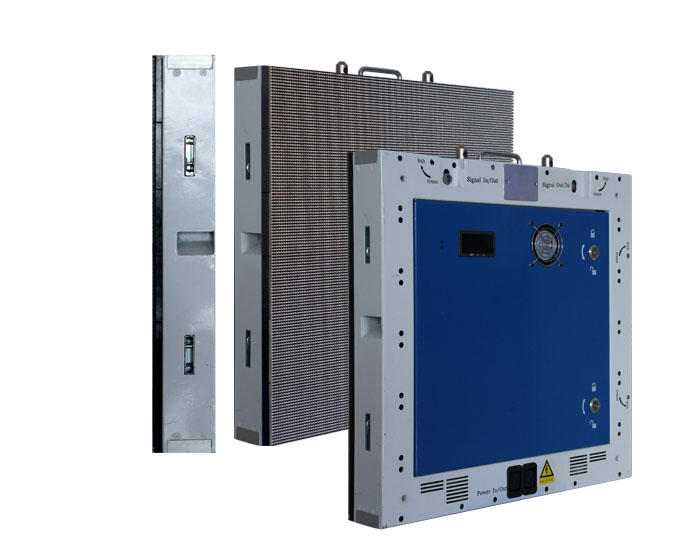

Indoor fixed LED display

The design has the features of "light", "thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.
This product has been applicated  at many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination.
The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color.
The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar.
High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.

Series		Indoor fixed front and rear series
Model Number		FI3	FI4	FI5	FI6	FI8
Pixel Pitch(mm)		3	4	4	6	8
Pixel Density (dots/m2）		111,111	62,500	40,000	27,778	15,625
LED type		SMD2020	SMD2020	SMD3528	SMD3528	SMD3528
Panel Size(mm)		576×576*170	512×512*170	640×640*170	576×576*170	512×512*170
Module Size(mm)		192*192	128*128	160*160	192*96	256*128
Panel Weight （kgs）		15.8	12.5	13.5	15.8	12.5
Panel Material		Steel/Aluminium	Steel/Aluminium	Steel/Aluminium	Steel/Aluminium	Steel/Aluminium
Maintenance Mode		Front /Rear	Front /Rear	Front /Rear	Front /Rear	Front /Rear
Viewing Angle(°)		H140°/V140°	H140°/V140°	H140°/V140°	H140°/V140°	H140°/V140°
Brightness(nits)		1800	1200	1800	1500	850
Refresh Rate (hz)		≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz
Color Depth(bits)		16	16	16	16	16
Voltage(v)		110/220 AC	110/220 AC	110/220 AC	110/220 AC	110/220 AC
Avg. Power Consumption (W/㎡ )		278	216	195	160	122
Max. Power Consumption (W/㎡)		836	647	586	482	366
Operating Humidity   Range		10-90%	10-90%	10-90%	10-90%	10-90%
Operating Temperature Range		-20℃～65℃	-20℃～65℃	-20℃～65℃	-20℃～65℃	-20℃～65℃
IP Grade (Front/Rear)		IP41	IP41	IP41	IP41	IP41
Lifetime(h)		≥100000H	≥100000H	≥100000H	≥100000H	≥100000H
