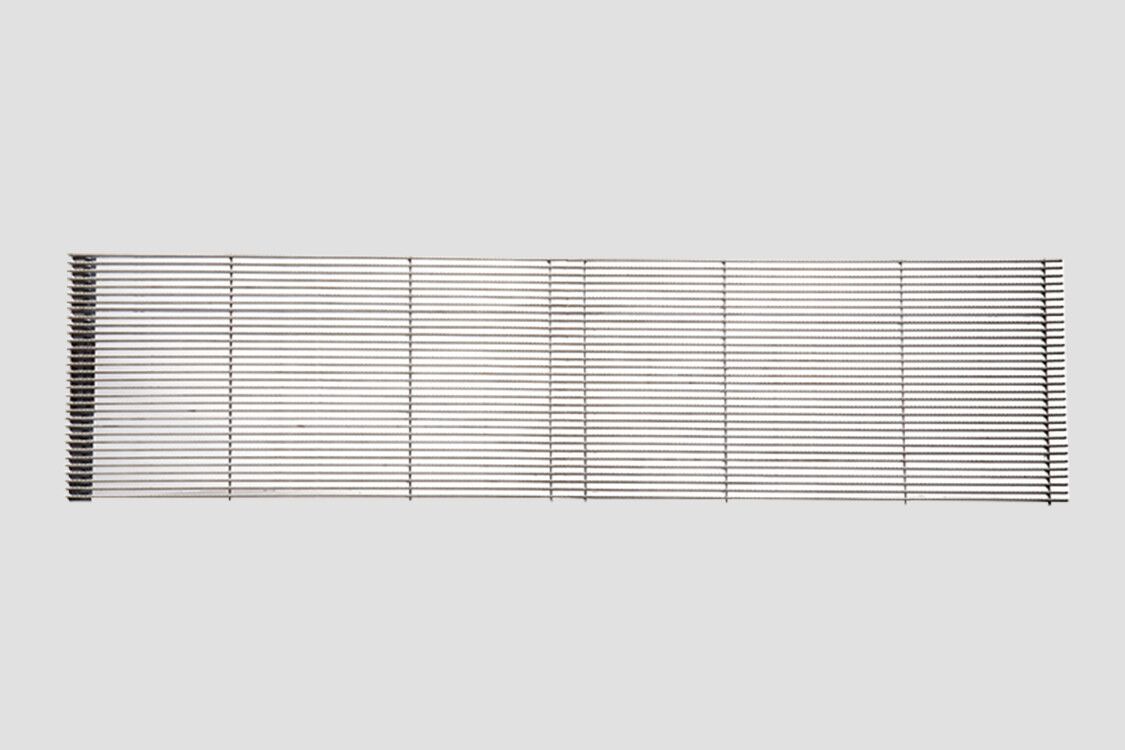

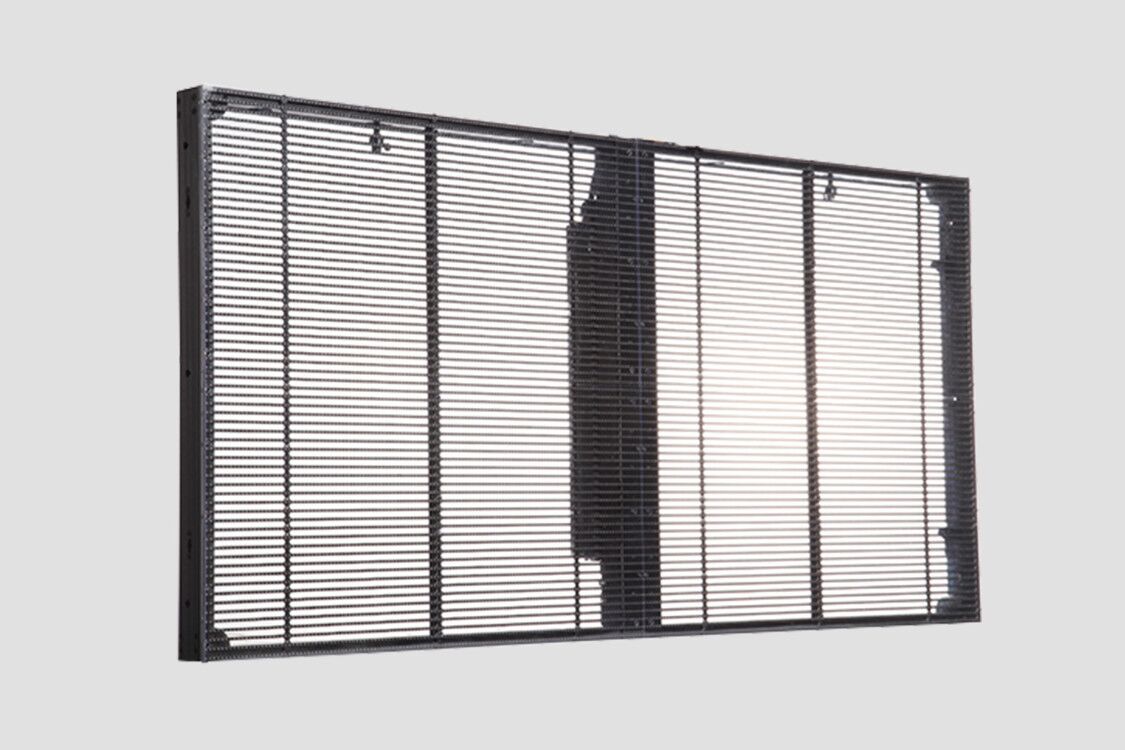

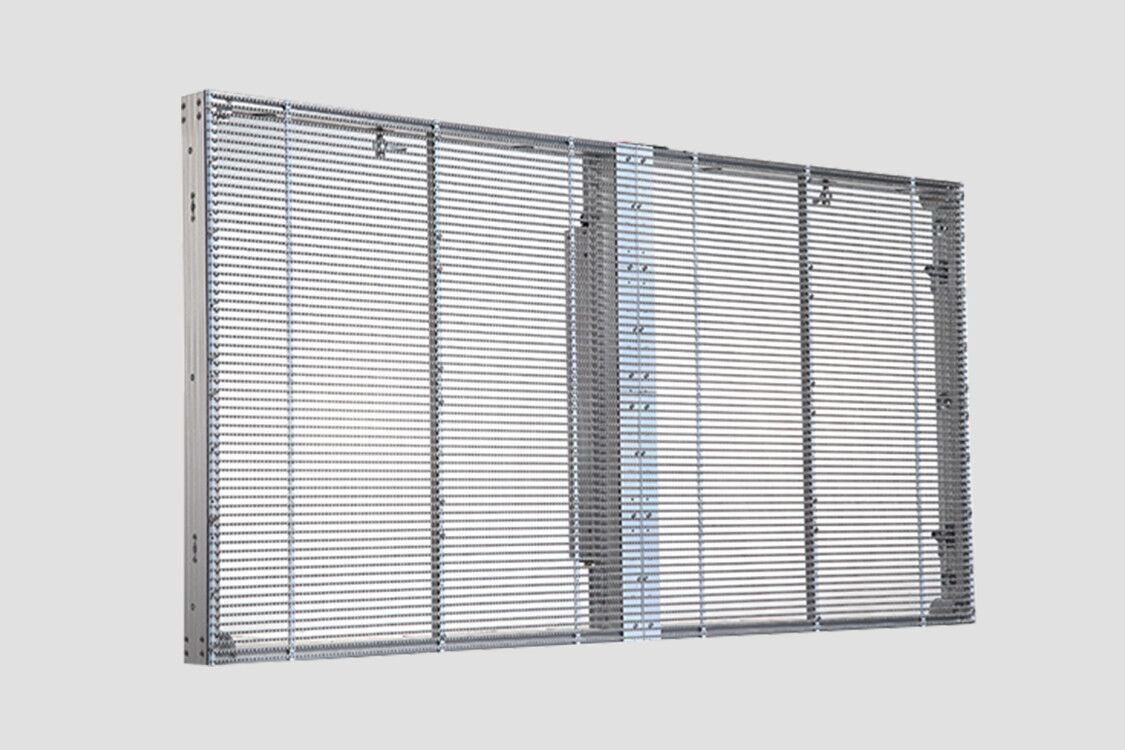

Transparent LED display

Transparent LED Display Features:



1. High transparency

Up to 80% transparency rate could keep the internal natural lighting and viewing, the SMD are almost invisible from a certain distance.

2. Light weight

PCB board is only 10mm thickness, 14kg/㎡ light weight allow small space for the installation possible, and minimizes the negative impact on the appearance of the buildings.

3. Fast installation

Fast lock systems ensure fast installation, saving labor cost.

4. Easy maintenance

Repairing single SMD without taking of single module or entire panel.

5. Stable and reliable

Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.

6. Wide applications for fixed installation and rent

Any building with glass wall, for example, stage rental for hanging and stacking ,bank, shopping mall, theatres, chain stores, hotels, and landmarks etc.

Transparent LED display spec.
Pixel pitch		2.5-7.8mm		3.08-7.8mm		3.9-7.8mm		5.2-7.81mm
LED lamp		SMD1921/1820		SMD1921/1820		SMD1921/1820		SMD1921/1820
Driver mode		11scanning		9scanning		8 scanning		6 scanning
Module size		500*125mm		500*125mm		500*250mm		500*250mm
Module resolution		198*16dots		162*16dots		128*32dots		96*32dots
Cabinet size(W*H)		1000*500mm		1000*500mm		1000*500mm		1000*500mm
Cabinet resolution		396*64dots		324*48dots		256*64dots		192*64dots
Light transmittance		≥70％		≥70％		≥68％		≥85％
Module quantities		8pcs		8pcs		4pcs		4pcs
Pixel density		50688dots/㎡		41472dots/㎡		32768 dots/㎡		24577dots/㎡
Material		Aluminum		Aluminum		Aluminum		Aluminum
Cabinet weight		7KG/14KG		7KG/14KG		11KG		7KG
Brightness		3500cd/㎡		≥3500cd/㎡		4000cd/㎡		4500cd/㎡
Viewing angle		H 140°，V 140°		H 140°，V 140°		H 140°，V 140°		H 140°，V140°
Minimum viewing distance		≥3m		≥3m		≥4m		≥5m
Gray level		16bit		16bit		16bit		16bit
Refresh rate		≥1920HZ		≥1920HZ		＞1920HZ		＞1920HZ
Frame rate		60fps		60fps		60fps		60fps
Input voltage		AC 86-264V/60Hz		AC 86-264V/60Hz		AC180-240V/60Hz		AC 86-264V/60Hz
Avg. power consumption		240W/㎡		240W/㎡		260W/㎡		235W/㎡
Max. power consumption		800W/㎡		800W/㎡		750W/㎡		589W/㎡
LED display weight		9kg/㎡		9kg/㎡		13.5kg/㎡		9.5kg/㎡
Mean Time Between Failures		>10,000 Hours		>10,000 Hours		>10,000 Hours		>10,000 hours
Lifespan		≥100,000 Hours		≥100,000 Hours		≥100,000 Hours		≥100,000 hours
Protection level		IP43		IP43		IP43		IP43
Temperature		﹣20℃+60℃                         ﹣40℃～+60℃		﹣20℃+60℃                         ﹣40℃～+60℃		﹣20℃+60℃                         ﹣40℃～+60℃		﹣20℃+60℃                 ﹣40℃～+60℃
Humidity		10%-85%RH		10%-85%RH		10%-85%RH		10%-85%RH
Operation system		Nova		Nova		Nova		Nova
